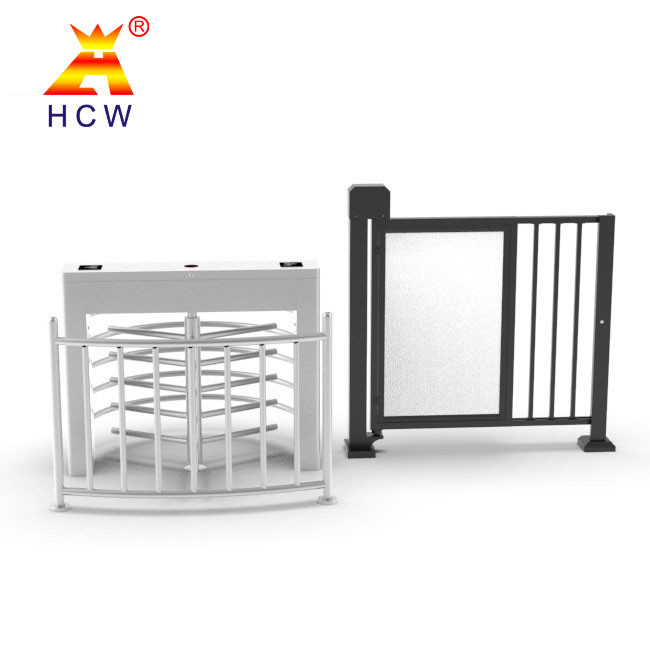

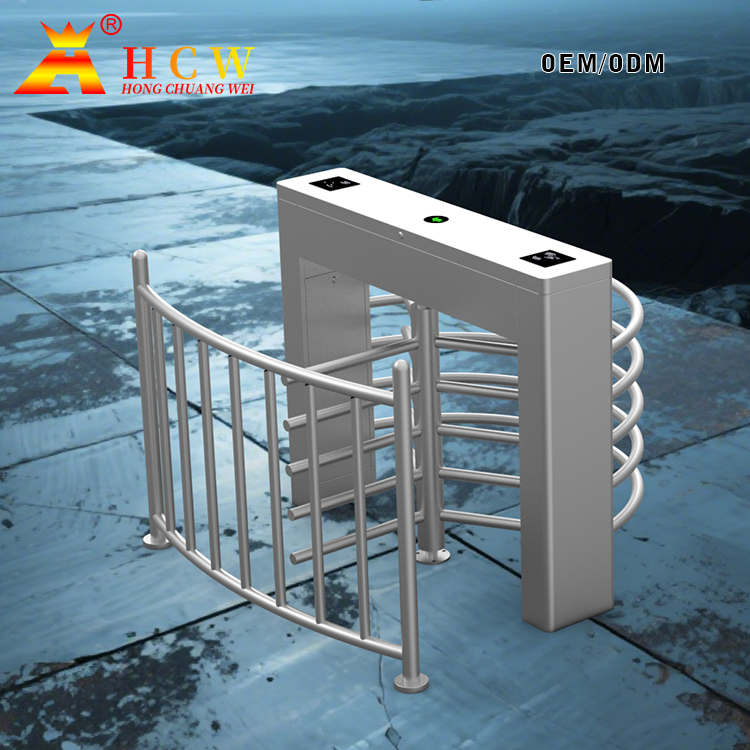

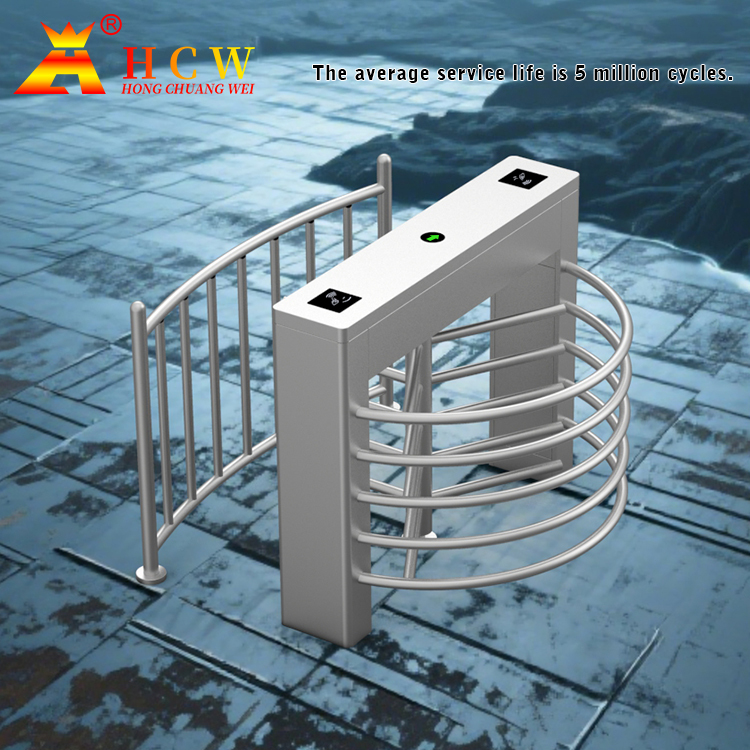

Stainless Steel Half Height Turnstile 600mm Width 120 Degree Rotation
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 304 Stainless Steel | Product Name | Half Height Turnstile |
|---|---|---|---|
| Warranty | 12 Months | Passing Speed | 20-30 Persons/min |
| Passage Width | 600mm | Certification | ISO,CE,RoHS |
| Rotation Direction | One-way Or Two-way | Working Environment | -25℃ To 70℃ |
| Highlight | Stainless Steel half height turnstile,600mm half height turnstile,Half Height Stainless Steel Turnstiles |
||
Product Description
Biometrics Recognition QR Code Card Access Control Half Height 120 Degree Rotation Stainless Steel Turnstile Gate
Functions & Features
1.Rainproof housing, 304 or 316 stainless steel or cold rolling steel
2.Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
3.If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
4.Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
5.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
6.Innovative and unique mounting surface ensures simple and convenient installation for system integrator.

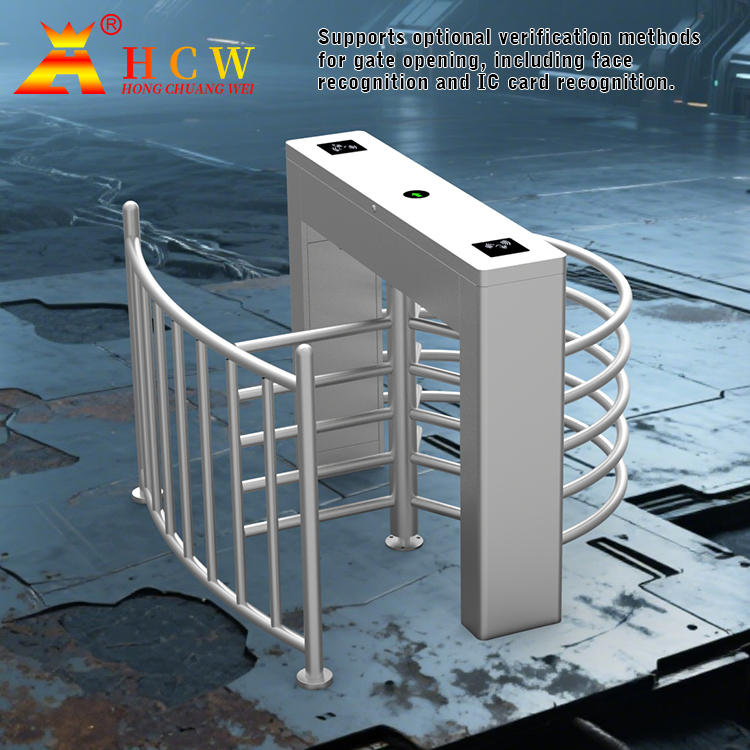

7.Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
8.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
9.The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
2.Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.
3.If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.
4.Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.
5.Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.
6.Innovative and unique mounting surface ensures simple and convenient installation for system integrator.
7.Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)
8.Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.
9.The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.
l 304 stainless steel box, luxurious and beautiful appearance
l sturdy and durable With personalized installation interface (convenient to integrate magnetic card, barcode card, ID card, IC card and other reading and writing equipment)
l Smooth operation, soft buffering, low noise, no mechanical shock
l The surface of the movement is electroplated with white heavy zinc acid, which is rust-proof and durable
l The gate control can be programmed, with a variety of working modes to choose from, and one-way or two-way control can be set (set by the user)
l effectively solve the loopholes in the management of the three-stick gate channel (the problem of drilling people under the rod)
l Power off: power off and unlock, the gate can pass freely when there is no power
l It has a unified and standard external electrical interface, which can be freely connected with various reading and writing devices, which is convenient for system integration
l It has a clear passage indication function, prompting the passage status (passable "→", no passage "×")
l Automatic reset function: After opening the gate, the system will be automatically locked if the system is not passed within the specified time, and the road travel time is adjustable
l Extended functions: counting function; display; direction indicator; top light; frame barrier
l Anti-rotation function: After the brake lever is rotated to a certain angle, the strong reverse rotation of the brake lever will be regarded as retrograde, and the system will automatically lock to prevent pedestrians from moving backwards
| Model | CW803 |
| Power supply | AC220+10% 50HZ |
| Rate power | Static power consumption <50W, dynamic power consumption <100W |
| Rotation direction: | One-way or two-way |
| Traffic direction | One-way or two-way traffic |
| Communication interface | 232,RS485 |
| Product components |
1set of standard case, 1 set of 90 degree revolving door, 1 set of control panel, 1 set of movement,1set motor |
| Size | L 1400*W 1450*H 1150 ,Chassis size:1400*280*1150 |
| Barrier length | 600mm, 120 degree barrier |
| Swing | ≤600mm |
| Open door time | Not adjustable |
| Number of passers: | 20/min |
| Working environment temperature | -25℃~+70℃,relative humidity ≤95% |
| Auto reset function | After the gate is opened, the system will be automatically locked if the traffic is not passed within the specified time, and the travel limit time can be adjusted |

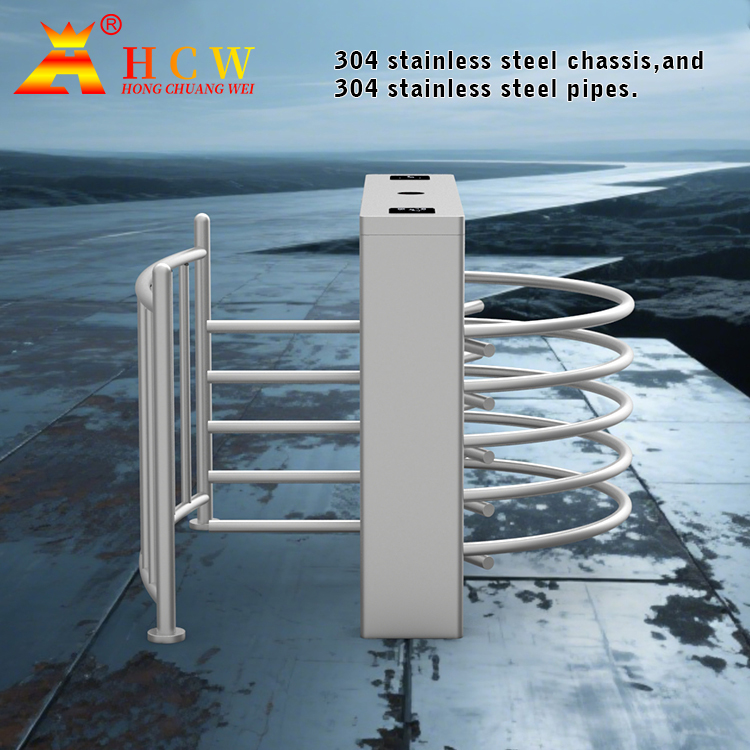

| Chassis material | Domestic standard 304 stainless steel, thickness: National standard 1.5mm |
